Corrosion is the destruction or deterioration of a material or its properties under the action of the environment. Most corrosion occurs in the atmospheric environment, which contains corrosive components and corrosion factors such as oxygen, humidity, temperature changes and pollutants. Salt spray corrosion is one of the most common and destructive atmospheric corrosion.
Connector salt spray testing is an important test method for evaluating the corrosion resistance of connectors in wet environments. With the development of science and technology, connectors are widely used in various fields, such as electric vehicles, garden tools, smart home appliances and so on. These connectors are often exposed to moisture for long periods of time, making salt spray testing increasingly important.
Salt spray test is an environmental test that uses artificial simulated salt spray environmental conditions created by salt spray test equipment to test the corrosion resistance of products or metal materials. It is mainly divided into two categories, the first is the natural environmental exposure test, and the second is the artificial accelerated simulated salt spray environmental test. Enterprises generally adopt the second type.
The main function of the connector salt spray test is to verify the corrosion resistance of the connector. Salt spray in humid environments can cause oxidative corrosion of metal components of connectors, reducing their performance and life. Through the salt spray test, enterprises can also improve and adjust the connector according to the structure of the salt spray test to improve the quality and reliability of the product. In addition, the connector salt spray test can also be used to compare the corrosion resistance of different products to help users choose the right connector.
Amass fourth generation connector salt spray test standards are mainly based on the national standard 《GB/T2423.17-2008》 salt solution concentration is (5±1)%, salt solution PH value is 6.5-7.2, the temperature in the box is (35±2) ℃, the salt spray settlement amount is 1-2ml/80cm²/h, the spray time is 48 hours. The spray method is continuous spray test.
The results showed that LC series had no corrosion after 48 hours of salt spray. These standards specify the test conditions, methods and evaluation indicators to make the test results more reliable.

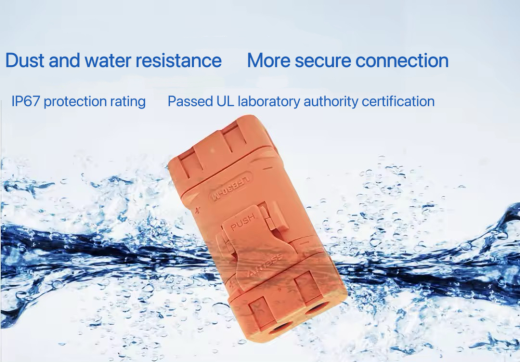

Amass fourth generation lithium connector In addition to the 48h salt spray test to achieve the role of corrosion resistance, the waterproof LF series of protection level up to IP67, in the connection state, this level of protection can effectively deal with the impact of rain, fog, dust and other environments, to ensure that the interior is not immersed in water and dust, to ensure its normal use.、
About Amass
Amass Electronics was founded in 2002, is a set of design, research and development, manufacturing, sales in one of the national specialized special “little giant” enterprises and provincial high-tech enterprises. Focus on lithium electric high-current connector for 22 years, deep cultivation of automotive level below the field of small power intelligent equipment.
Amass Electronics operates based on ISO/IEC 17025 standards and is accredited by UL Eyewitness Laboratories in January 2021. All experimental data are from a variety of experimental testing equipment, leading and complete laboratory equipment, is the hard strength of a laboratory.
