OEM/ODM Factory Power Supply Plug - LCC30PW High current connector – Amass
OEM/ODM Factory Power Supply Plug - LCC30PW High current connector – Amass Detail:
Product Parameters
| Voltage | 1000V DC |
| Insulation Resistance | ≥2000MΩ |
| Contact Resistance | ≤1mΩ |
| Flame Level | UL94 V-0 |
| Glowing wire flammability index | GWFI 960℃ |
| Work Temperature | -40~120℃ |
| Housing material | PBT |
| Terminal material | Copper，Silver plated |
| Salt Spray | 48h(Level4) |
| Environmental performance | RoHS2.0 |

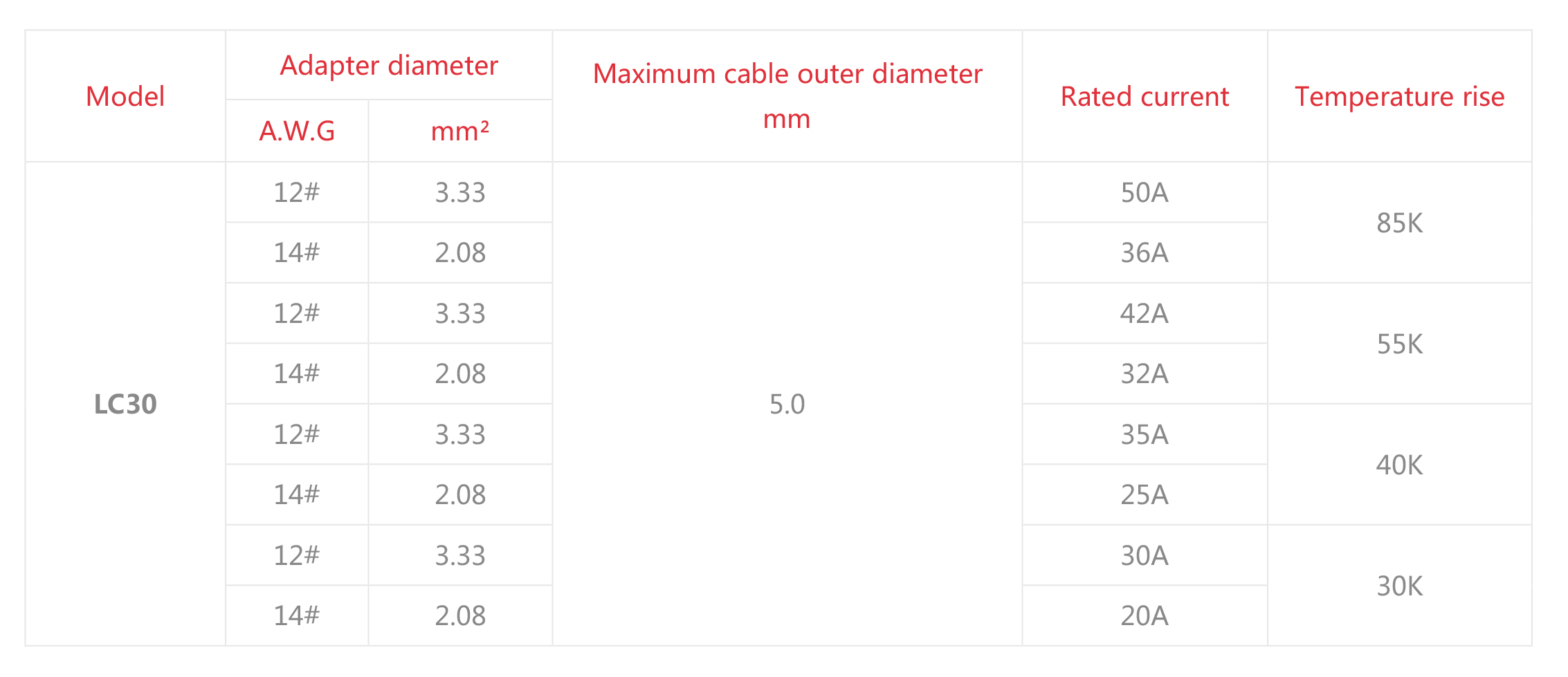

Electric Current

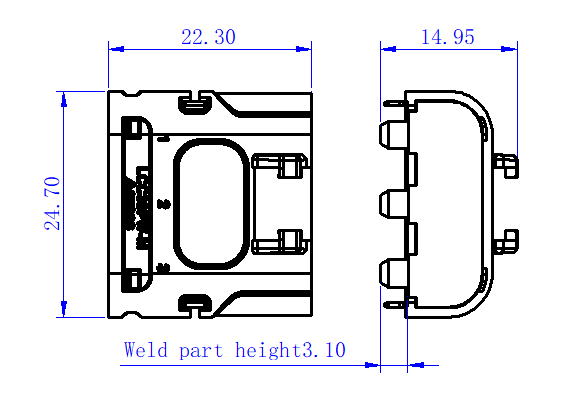

Product Drawings
Product Parameters
Amass LC series lithium battery connectors have high adaptability, high reliability and other advantages in the application of solar street lamps. Due to the outdoor service conditions and regional climate, high or low temperature is also a major factor in the test of DC terminals. Extreme high and low temperatures will damage the insulation materials, reduce the insulation resistance and withstand voltage performance, and degrade or even fail the DC terminal performance. LC series DC terminals are made of high temperature resistant material PBT, which can withstand high and low temperature environments from – 20 ℃ to 120 ℃, and can adapt to the long-term continuous and stable operation of street lamps in most temperature environments
When using the power connector, it is necessary to reasonably select the connector and its installation method. A good installation method can improve the utilization rate and service life of intelligent equipment. Amass connectors are mainly divided into solder wire connectors and solder board connectors. Among them, PCB board connectors are vertical board connectors and horizontal board connectors. Customers can choose according to the size of the connector space reserved inside the intelligent equipment. Moreover, there are diversified installation methods of wire board combination, and more than 100 types of internal applications are fully covered.
Why Choose Us
Laboratory strength
The laboratory operates based on the ISO / IEC 17025 standard, establishes four level documents, and continuously improves in the process of operation to continuously improve the laboratory management and technical capacity; And passed UL witness Laboratory Accreditation (WTDP) in January 2021
Team strength
The company has a professional team of technical research and development, marketing services and lean production to provide customers with a variety of high-quality and cost-effective “high current connector products and related solutions.”
Honor and qualification
Amass products have passed UL, CE and ROHS certification
Applications
Electric Bicycle
Applicable to the internal core parts of lithium battery bicycles
The shell is made of PBT material, which has strong mechanical performance and is resistant to falling and abrasion.
Electric Vehicle
Applicable to electric two wheeled vehicles, tricycles and other travel equipment
Copper bar design contact, 360 ° coincidence, high current and low resistance.
Energy storage equipment
Applicable to photovoltaic energy storage inverter
It has the characteristics of small volume, large current and low resistance
Intelligent robot
It is applicable to intelligent devices such as robot dogs and distribution robots
It can maintain good electrical stability under humid and high temperature conditions
Model UAV
Applicable to police and patrol UAVs
Flame retardant shell + high current carrying conductor, double guarantee operation
Small home appliances
Applicable to intelligent sweeping robot
The size of a coin, the application scenario of limited and narrow space
Tools
Applicable to lithium battery lawnmower
Buckle design, strong vibration resistance in strong vibration environment
Transportation tools
It is applicable to motor, battery, controller and other components of walking tools
High compatibility, the same series of connectors can be used together
FAQ
Q: How did your guests find your company?
A: Promotion / brand reputation / recommended by old customers
Q: What parts are applicable to your products?
A: Our products can be used for lithium batteries, controllers, motors, chargers and other components
Q: Do your products have cost-effective advantages? What are the specific ones?
A: Save half the price, replace the standard connector, and provide customers with one-stop systematic solutions
